| 产品型号Model Number |
p4 |
P5 |
P6 |
P8 |
P10 |
p10 |
p16 |
| 模组Unit Module |
| 模组尺寸Module size |
256*128 |
320*160 |
192*192 |
244*244 |
320*160 |
256*256 |
| 物理点间距Pixel pitch |
4mm |
5mm |
6mm |
7.62mm |
10mm |
10mm |
16mm |
| LED封装Package mode |
SMD1921 |
SMD2727 |
SMD3535 |
| 模组分别率Pixel resolution |
64*32 |
64*32 |
32*32 |
32*16 |
32*16 |
32*16 |
16*16 |
| 扫描方式Scan mode |
1/8S |
1/8S |
1/8S |
1/4S |
1/2S |
1/4S |
1/1S |
| 白平衡亮度Brightness of white balance |
5500-6000 |
5500-6000 |
5600-6200 |
6000-6500 |
6000-6500 |
4500-5500 |
6000-6500 |

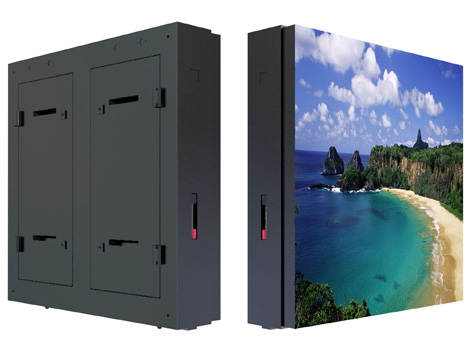

| LED屏机箱Cabinet |
| 箱体尺寸cabinet size |
1024*1024 |
960*960 |
960*960 |
1024*1024 |
960*960 |
960*960 |
1024*1024 |
| 箱体材质cabinet Material |
简易防水铁箱体/标准防水铁箱体 |
| 箱体分辨率Pixel per cabinet |
256*256 |
192*192 |
160*160 |
128*128 |
96*96 |
96*96 |
64*64 |
| 箱体体厚度Thickness |
120mm |
| 整屏 |
| 物理密度Pixels Density(dots/m2) |
62500 |
40000 |
27778 |
17222 |
10000 |
10000 |
3906 |
| 最佳视距Best viewing distance |
≥4M |
≥5M |
≥6M |
≥8M |
≥10M |
≥10M |
≥16M |
| 最佳视角Best viewing angle |
160°(W) 120°(H) |
| 环境温度Temperature |
存贮storage:-35℃～+85℃ 工作working:-20℃～+50℃ |
| 相对湿度Relative humidity |
10%-95% |
| 工作电压Working voltage |
AC110～220V±10% |
| 平均功耗Average Power consumption |
200W/㎡ |
| 最大功耗Max.Power consumption |
≤900W/㎡ |
| 控制主机CPU |
Pentium4 or above P4或以上 |
| 操作系统Operation system |
WIN98/2000/NT/XP/WIN7 |
| 控制方式Control method |
同步控制Synchronization |
| 驱动器件Driving device |
Constant drive IC 恒流驱动 |
| 换帧频率Frme Rate |
≥70HZ |
| 刷新频率Refresh frequency |
≥1200HZ |
| 灰度/颜色Grey scale/colors |
4096级,可显示16.7M颜色 4096gray level/16.7M colors |
| 平均无故障时间 MTBF |
≥10000hours |
| 电源开关Power switch |
自动开关Automatic switch |
| 显示模式Display Mode |
≥800*600/1024*768/1920*1080 |
