P10-4S户外常规屏系列技术参数P10-4S Outdoor conventional screen series technical parameters
|
|
|
|
|
|
|
|
|
|
产品型号Model Number
|
P10
|
|

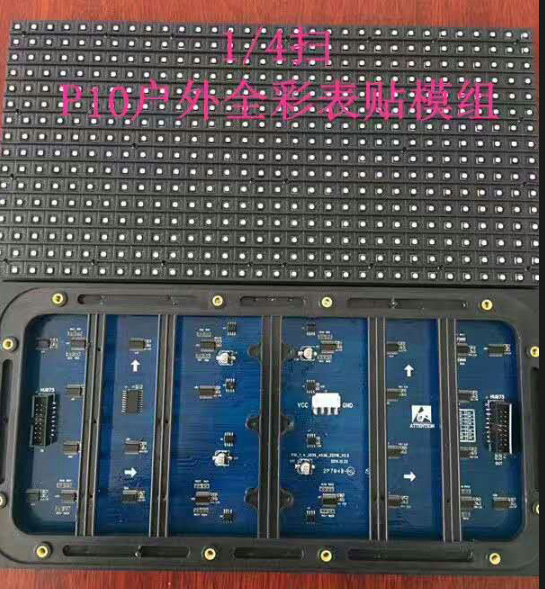

模组Unit Module
|
|
模组尺寸Module size
|
320*160
|
|
物理点间距Pixel pitch
|
10mm
|
|
LED封装Package mode
|
SMD3535
|
|
模组分别率Pixel resolution
|
32*16
|
|
扫描方式Scan mode
|
1/4S
|
|
白平衡亮度Brightness of white balance
|
4500-5500
|
|

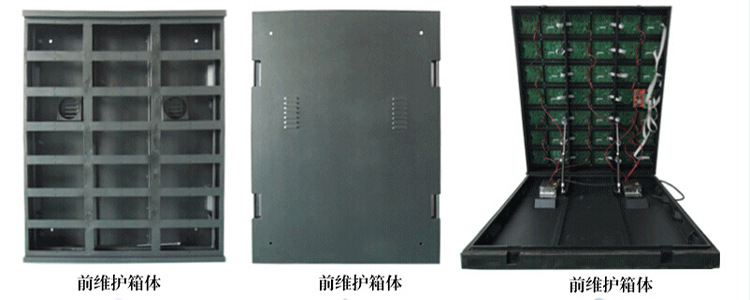

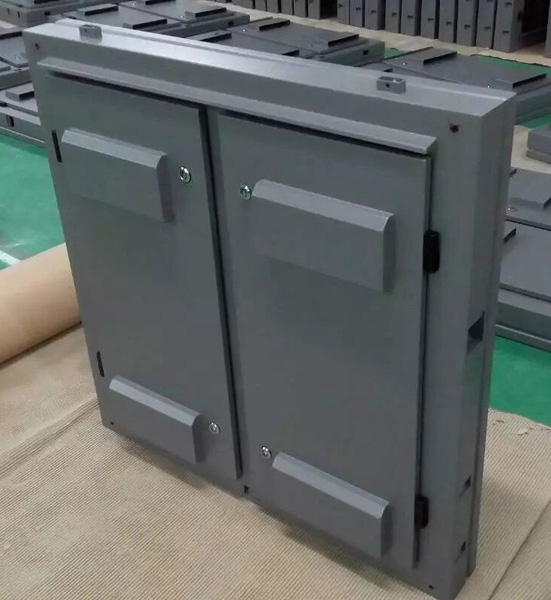

LED屏机箱Cabinet
|
|
箱体尺寸cabinet size
|
960*960
|
|
箱体材质cabinet Material
|
简易防水铁箱体/标准防水铁箱体
|
|
箱体分辨率Pixel per cabinet
|
96*96
|
|
箱体体厚度Thickness
|
120mm
|
|
整屏
|
|
物理密度Pixels Density(dots/m2)
|
10000
|
|
最佳视距Best viewing distance
|
≥10M
|
|
最佳视角Best viewing angle
|
160°(W) 120°(H)
|
|
环境温度Temperature
|
存贮storage:-35℃～+85℃
工作working:-20℃～+50℃
|
|
相对湿度Relative humidity
|
10%-95%
|
|
工作电压Working voltage
|
AC110～220V±10%
|
|
平均功耗Average Power consumption
|
200W/㎡
|
|
最大功耗Max.Power consumption
|
≤900W/㎡
|
|
控制主机CPU
|
Pentium4 or above P4或以上
|
|
操作系统Operation system
|
WIN98/2000/NT/XP/WIN7
|
|
控制方式Control method
|
同步控制Synchronization
|
|
驱动器件Driving device
|
Constant drive IC 恒流驱动
|
|
换帧频率Frme Rate
|
≥70HZ
|
|
刷新频率Refresh frequency
|
≥1200HZ
|
|
灰度/颜色Grey scale/colors
|
4096级,可显示16.7M颜色
4096gray level/16.7M colors
|
|
平均无故障时间 MTBF
|
≥9000hours
|
|
电源开关Power switch
|
自动开关Automatic switch
|
|
显示模式Display Mode
|
≥800*600/1024*768/1920*1080
|
