P2.976租赁屏技术参数 P2.976 Lease technology parameters |
||||||
| 产品型号Model Number | P2.976 | |||||
| 模组Unit Module | ||||||
| 模组尺寸Module size | 250mm*250mm | |||||
| 物理点间距Pixel pitch | 2.976mm | |||||
| LED封装Package mode | SMD2121 | |||||
| 模组分别率Pixel resolution | 84*84 | |||||
| 扫描方式Scan mode | 1/21S | |||||
| LED屏机箱Cabinet | ||||||
| 箱体尺寸cabinet size | 500mm*500mm / 500mm*1000mm | |||||

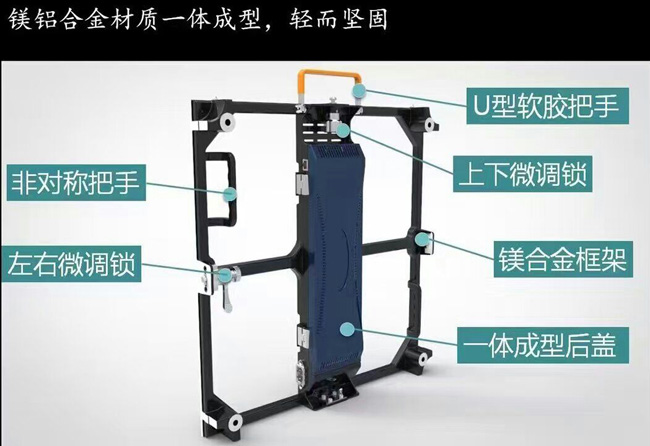

| 箱体材质cabinet Material | 压铸铝 | |||||
| 箱体分辨率Pixel per cabinet | 168*168 / 168*336 | |||||
| 防护等级Protection grade | IP43 | |||||
| 箱体重量 weight | 7.5kg | |||||
| 箱体体厚度Thickness | 75mm | |||||
| 整屏 | ||||||
| 使用环境 | 室内Indoor | |||||
| 白平衡亮度Brightness of white balance | 1000-1200 | |||||
| 物理密度Pixels Density(dots/m2) | 112910 | |||||
| 最佳视距Best viewing distance | ≥3M | |||||
| 最佳视角Best viewing angle | 160°(W) 120°(H) | |||||
| 环境温度Temperature |
存贮storage:-35℃～+85℃ 工作working:-20℃～+50℃ |
|||||
| 相对湿度Relative humidity | 10%-95% | |||||
| 工作电压Working voltage | AC220V/50HZ AC110V/60HZ | |||||
| 平均功耗Average Power consumption | 200-300W/㎡ | |||||
| 最大功耗Max.Power consumption | 800-1000W/㎡ | |||||
| 控制主机CPU | Pentium4 or above P4或以上 | |||||
| 操作系统Operation system | WIN98/2000/NT/XP/WIN7 | |||||
| 控制方式Control method | 同步控制Synchronization | |||||
| 驱动器件Driving device | Constant drive IC 恒流驱动 | |||||
| 换帧频率Frme Rate | ≥70HZ | |||||
| 刷新频率Refresh frequency | ≥1200HZ | |||||
| 灰度/颜色Grey scale/colors |
4096级,可显示16.7M颜色 4096gray level/16.7M colors |
|||||
| 平均无故障时间 MTBF | ≥9000hours | |||||
| 电源开关Power switch | 自动开关Automatic switch | |||||
| 显示模式Display Mode | ≥800*600/1024*768/1920*1080 | |||||
