| P2.84 Lease technology parameters | ||||||
| Model Number | P2.84 | |||||
| Unit Module | ||||||
| Module size | 250mm*500mm | |||||
| Pixel pitch | 2.84mm | |||||
| LEDPackage mode | SMD2121 | |||||
| Pixel resolution | 88*176 | |||||
| 跽Scan mode | 1/22S | |||||
| LEDCabinet | ||||||
| cabinet size | 500mm*500mm / 500mm*1000mm | |||||

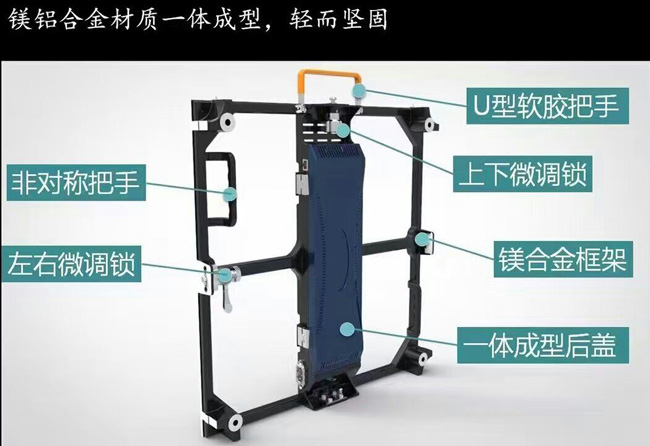

| cabinet Material | die-casting aluminum | |||||
| Pixel per cabinet | 176*176 / 176*352 | |||||
| Protection grade | IP43 | |||||
| weight | 7.5kg | |||||
| Thickness | 75mm | |||||
| Indoor | ||||||
| Brightness of white balance | 1000-1200 | |||||
| Pixels Density(dots/m2) | 123983 | |||||
| Best viewing distance | 3M | |||||
| Best viewing angle | 160(W) 120(H) | |||||
| Temperature | storage:-35桫+85 working:-20桫+50 | |||||
| Relative humidity | 10%-95% | |||||
| Working voltage | AC220V/50HZ AC110V/60HZ | |||||
| Average Power consumption | 200-300W/O | |||||
| Max.Power consumption | 800-1000W/O | |||||
| CPU | Pentium4 or above P4 | |||||
| Operation system | WIN98/2000/NT/XP/WIN7 | |||||
| Control method | Synchronization | |||||
| Driving device | Constant drive IC | |||||
| Frme Rate | 70HZ | |||||
| Refresh frequency | 1200HZ | |||||
| /Grey scale/colors | 4096,16.7M 4096gray level/16.7M colors | |||||
| MTBF | 9000hours | |||||
| Power switch | Automatic switch | |||||
| Display Mode | 800*600/1024*768/1920*1080 | |||||
