P5-16S Indoor LED disply technical parameters
|
|
|
|
Model Number
|
p5-16S
|
|
Unit Module
|
|
Module size
|
320*160
|
|
Pixel pitch
|
5mm
|
|
LEDPackage mode
|
SMD2121
|
|
Pixel resolution
|
64*32
|
|
跽Scan mode
|
1/16S
|
|
Brightness of white balance
|
800-1000cd/m2
|
|

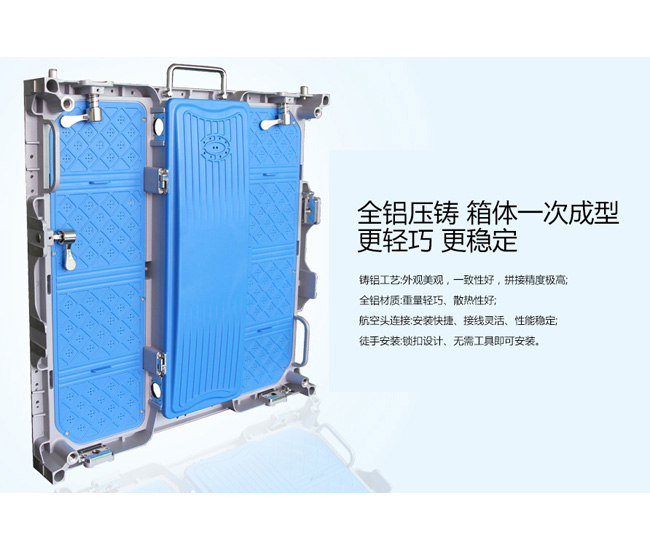

LEDCabinet
|
|
|
|
|
cabinet size
|
640*640
|
|
cabinet Material
|
die-casting aluminum
|
|
Pixel per cabinet
|
128*128
|
|
Thickness
|
75mm
|
|
|
|
|
|
|
Pixels Density(dots/m2)
|
40000
|
|
Best viewing distance
|
5M
|
|
Best viewing angle
|
160(W) 120(H)
|
|
Temperature
|
storage:-35桫+85 working:-20桫+50
|
|
Relative humidity
|
10%-95%
|
|
Working voltage
|
AC110220V10%
|
|
Average Power consumption
|
200W/O
|
|
Max.Power consumption
|
900W/O
|
|
CPU
|
Pentium4 or above P4
|
|
Operation system
|
WIN98/2000/NT/XP/WIN7
|
|
Control method
|
Synchronization
|
|
Driving device
|
Constant drive IC
|
|
Frme Rate
|
70HZ
|
|
Refresh frequency
|
1200HZ
|
|
/Grey scale/colors
|
4096,16.7M
4096gray level/16.7M colors
|
|
MTBF
|
9000hours
|
|
Power switch
|
Automatic switch
|
|
Display Mode
|
800*600/1024*768/1920*1080
|
