| P4-16S Indoor LED display technology parameters | |||
| Model Number | p4-16S | ||
| Unit Module | |||
| Module size | 256*128 | ||
| Pixel pitch | 4mm | ||
| LEDPackage mode | SMD2121 | ||
| Pixel resolution | 64*32 | ||
| 跽Scan mode | 1/16S | ||
| Brightness of white balance | 900-1200cd/m2 | ||

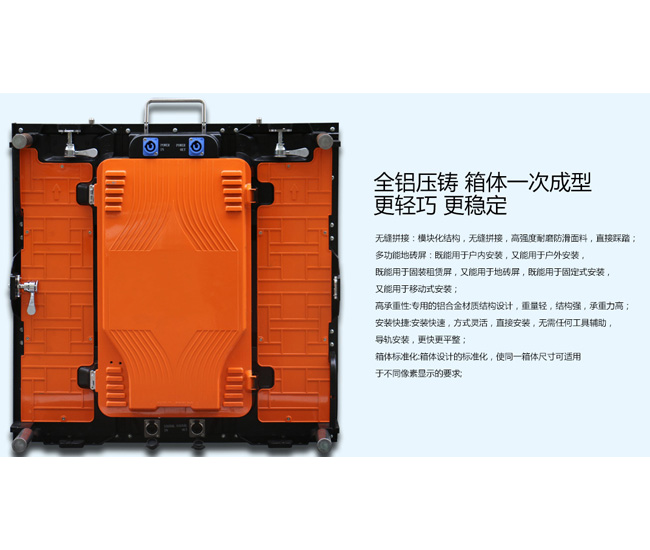

| LEDCabinet | |||
| cabinet size | 512*512 | ||
| cabinet Material | die-casting aluminum | ||
| Pixel per cabinet | 128*128 | ||
| Thickness | 75mm | ||
| Pixels Density(dots/m2) | 62500 | ||
| Best viewing distance | 4M | ||
| Best viewing angle | 160(W) 120(H) | ||
| Temperature | storage:-35桫+85 working:-20桫+50 | ||
| Relative humidity | 10%-95% | ||
| Working voltage | AC110220V10% | ||
| Average Power consumption | 200W/O | ||
| Max.Power consumption | 900W/O | ||
| CPU | Pentium4 or above P4 | ||
| Operation system | WIN98/2000/NT/XP/WIN7 | ||
| Control method | Synchronization | ||
| Driving device | Constant drive IC | ||
| Frme Rate | 70HZ | ||
| Refresh frequency | 1200HZ | ||
| /Grey scale/colors |
4096,16.7M 4096gray level/16.7M colors |
||
| MTBF | 9000hours | ||
| Power switch | Automatic switch | ||
| Display Mode | 800*600/1024*768/1920*1080 | ||
