P2.5 indoor conventional screenLocation: Home > Products

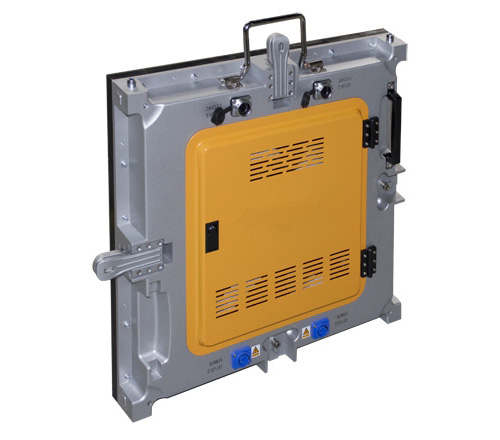

P2.5 indoor conventional screen
Code: JL-P2.5
Sketch:P2.5 indoor conventional screen
Detail
Model Number p2.5
Unit Module
Module size 160*160
Pixel pitch 2.5mm
LEDPackage mode SMD2121
Pixel resolution 64*64
跽Scan mode  1/32S
Brightness of white balance 900-1200cd/m2
LEDCabinet
cabinet size 480*480 / 640*640
cabinet Material die-casting aluminum
Pixel per cabinet 192*192 / 256*256
Thickness 75mm
Pixels Density(dots/m2) 160000
Best viewing distance 2.5M
Best viewing angle  160(W) 120(H)
Temperature storage:-35桫+85      working:-20桫+50
Relative humidity 10%-95%
Working voltage AC110220V10%
Average Power consumption 200W/O
Max.Power consumption 900W/O
CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization
Driving device Constant drive IC
Frme Rate 70HZ
Refresh frequency 1200HZ
/Grey scale/colors 4096,16.7M     4096gray level/16.7M colors
 MTBF 9000hours
Power switch Automatic switch
Display Mode 800*600/1024*768/1920*1080
